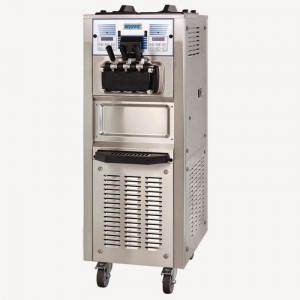

Soft Serve Freezer
SV 378AB
Soft Serve Freezer
Overview
Soft Serve Freezer - SV 378AB
Twin twist flavor, Standing Unit, Gravity feed, Microprocessor control
Features
Product Offering
- Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.
Freezing Cylinder
- Two, 3.2 liter(3.38 quarts)
Mix Hopper
- Two, 15 liter(15.9 quarts)
- Separate hopper refrigeration maintains mix temperature below 4.4°C(40°F) during cool and standby modes.
Mix Low Indicator
- When mix level is low, the Mix Low light turns "ON" to alert operator to add mix.
Standby
- Maintains product temperature in the mix hoppers and freezing cylinders below 4.4°C (40°F) during long no-use periods.
Microprocessor Controls
- Automatically regulates refrigeration and maintains consistent product quality by controling product temperature and viscosity.
Counter
- Records number of dispenses per day and total number of dispenses.
Temperature Display
- Displays hopper and cylinder temperature; helps control product safety.
Safety Protections
- Low temperature and motor overload cutouts protect from cylinder over freezing.
- High pressure switch prevents compressor overheat.
- Thermal overload protects from motor overheat.
Tech Specs
| Specifications | |
| Electricity | 380-415/50/3 208-230/60/3 |
| Maximum Fuse Size | 40 50 |
| Min. Circuit Ampacity | 32 40 |
| Output | 720 Cups/Hour |
| Packaging Volume | 0.98 CBM / 34.61 CBF |
| Poles(P) / Wires(W) | /5W. /4W |
| Dimension (W x D x H) | Net: 602x702x1562mm Shipping: 700x800x1750mm |
| Model | SV 378AB |
